1.3GHz Linear Power Amplifiers

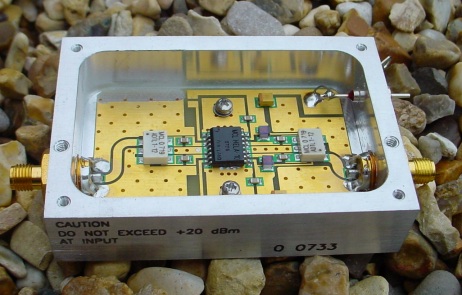

PA1.3-0.5 - Driver amplifier for low power Tx modules

1240-1300MHz
Ideal for use with Comtech ATV transmitters.
50mW input, 0.5W output
Requires +12V, 400mA PSU
built & tested in case   (no lid)            £65

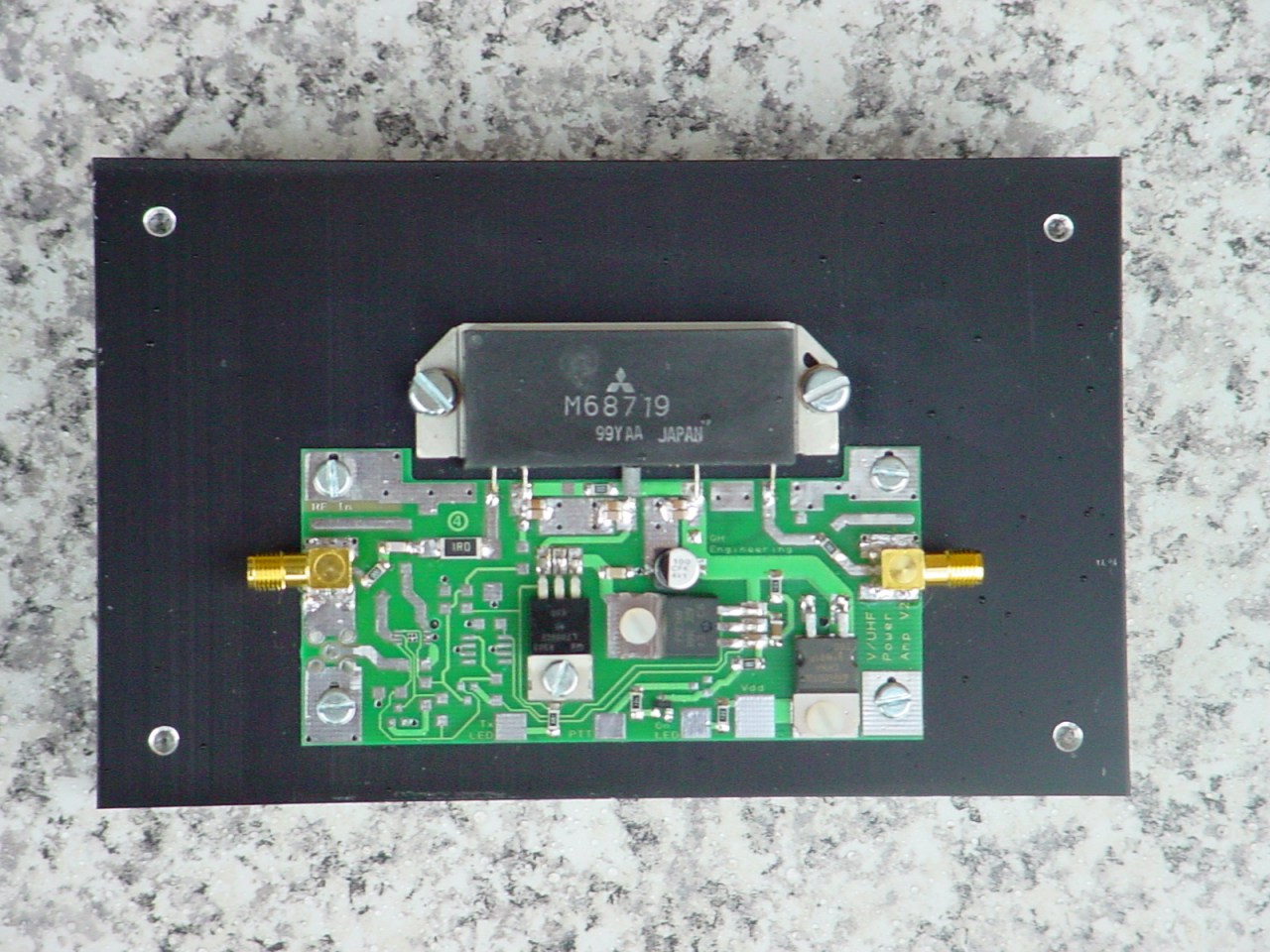

PA1.3-16 - FM ATV

1240-1300MHz
Ideal for use with Comtech ATV transmitters.
50mW input, 16W output
Requires +12V, 4.5A PSU
mini-kit, plain heatsink                        £118
mini-kit, drilled & tapped heatsink      £130
built & tested in case                          £308


PA1.3-25

1240-1300MHz
75mW input, 25W output
Requires +12V, 10A PSU
mini-kit, plain heatsink                        £106
mini-kit, drilled & tapped heatsink      £118
built & tested in case                          £296

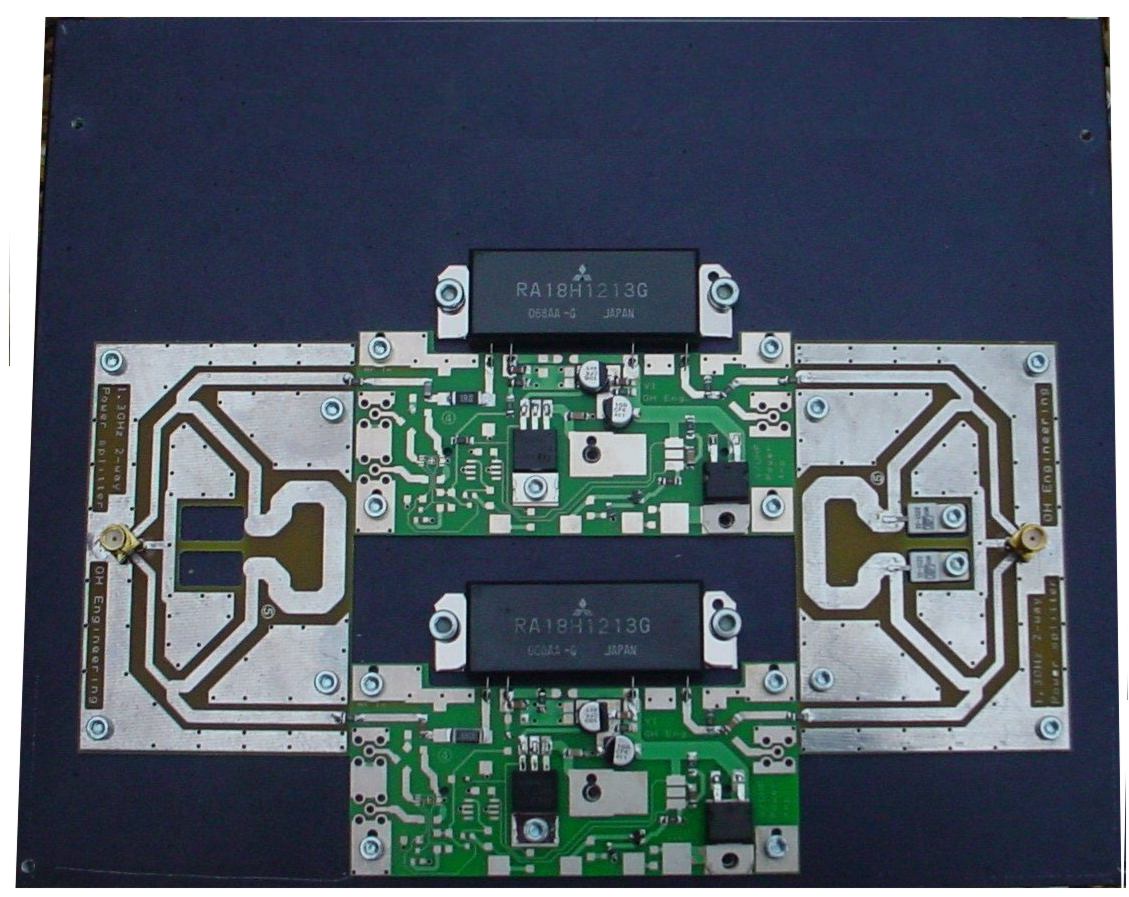

PA1.3-50

1240-1300MHz
250mW input, 50W output (45W SSB)
Requires +12V, 20A PSU
mini-kit, plain heatsink                        £197
mini-kit, drilled & tapped heatsink      £224
built & tested in case                          £417
NOTE - the PA1.3-50 is currently being re-desinged;

please ask about availability

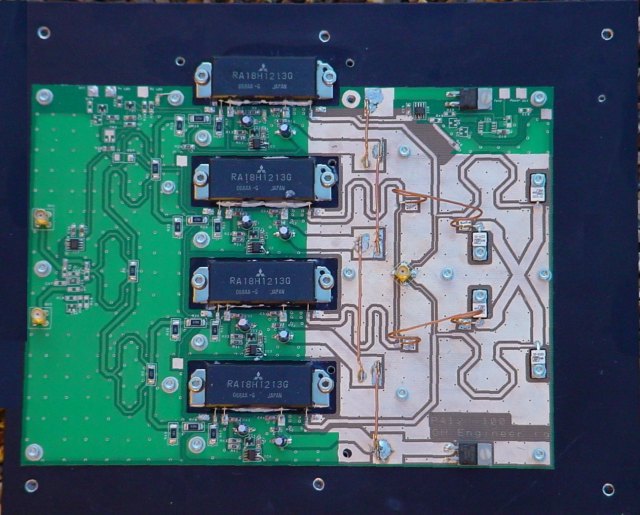

PA1.3-100
                                                                                                                                                                                                                                                                                                                                                                                                          1240-1300MHz
3W input, 100W output (80W SSB)
Requires 44A, 13.8V PSU
mini-kit, drilled & tapped heatsink      £460
full kit, drilled & tapped heatsink        £550
built & tested in case                         £715

notes :-
both the min-kit and the full kit for the PA1.3-100 are supplied with drilled and tapped heatsink
Please ask if you have any queires.
