AD9910 plots

Some plots of the AD9910 evaluation board, November 2007.


52MHz :-

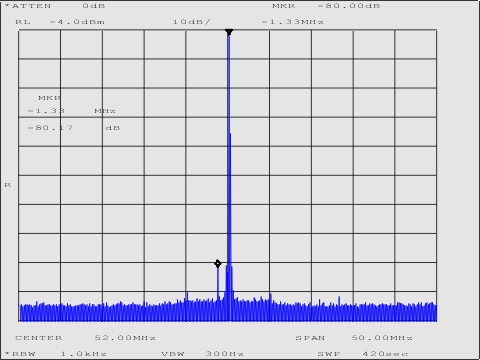

50MHz span

wide

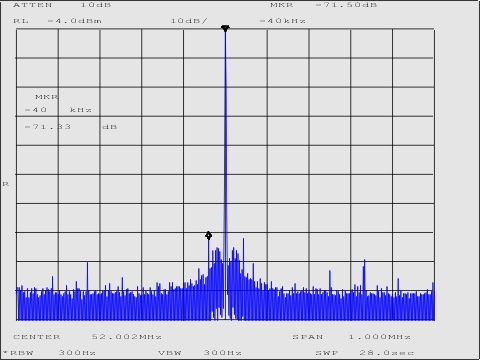

1MHz span
med

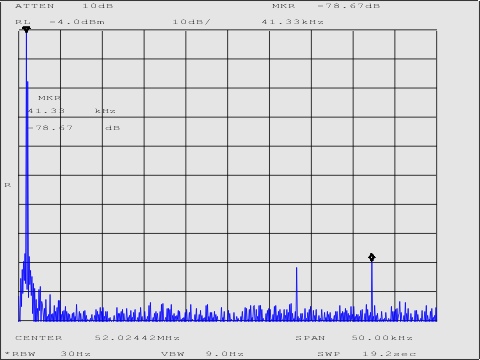

50kHz span

narrow


28MHz :-

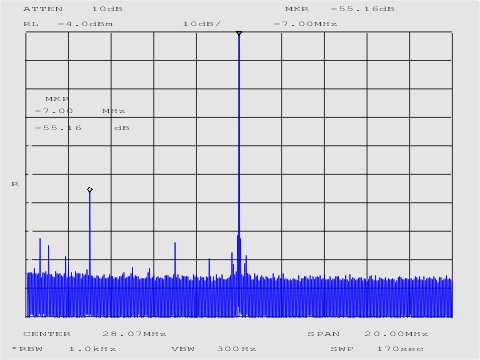

20MHz span

wide

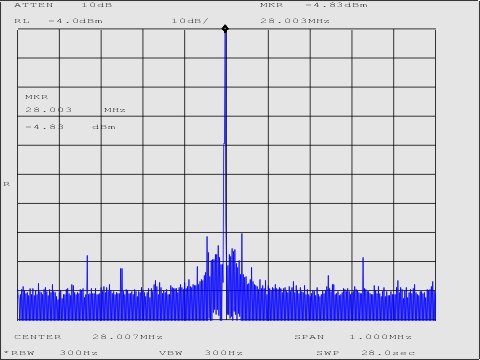

1MHz span
med

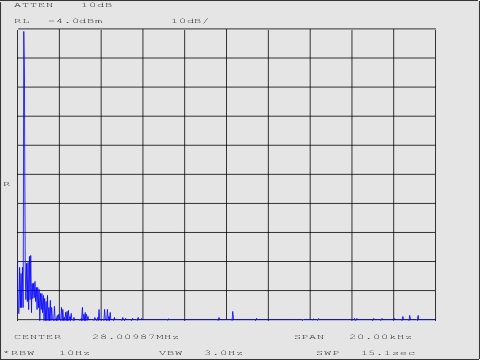

20kHz span

narrow
